Cabinet

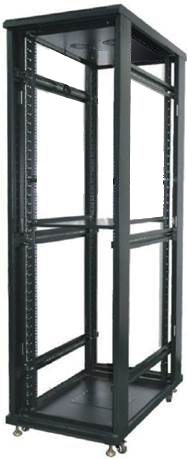

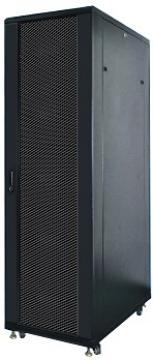

CB6 Rack Size of Standard Model - W600MM
CB8 Rack Size of Standard Model - W800MM

Features & Benefits

  • Exquisite design with precise craftsmanship. Welded steel fame for front and back part(material: SPCC), that can be flat packing, easy to transfer.
  • Flexible vertical rails that meet ANSI/EIA RS-310-D standard can fit different 19” cabinet rack.
  • Cable entry on the top, adjustable cable entrance at the bottom with panel.
  • Movable slide side pillars can fit different depth equipment.
  • The door can be easily assembled and disassembled without any additional tools.
  • The side panel can be easily assembled and removable without any hand tools, and with the round lock.
  • Steel rear door with a round lock.
  • The rack can be set thecaster and the leveling feet can poise the equipment.
  • The standard color is black color or white color for powder coated.
  • Top panel with fan unit to make theventilation of equipment.

Specification

CB6 Rack Size of Standard Model - W600MM Model Name

U
Unit

DO

DI

HO

HI

CB6-4206

42U

600

505

2040

1870

CB6-4208

42U

800

705

2040

1870

CB6-4210

42U

1000

905

2040

1870

CB6-4706

42U

600

505

2265

2090

CB6-4708

42U

800

705

2265

2090

CB6-4710

42U

1000

905

2265

2090

CB8 Rack Size of Standard Model - W800MM Model Name

U
Unit

DO

DI

HO

HI

CB8-4208

42U

800

705

2040

1870

CB8-4210

42U

1000

905

2040

1870

CB8-4708

42U

800

705

2265

2090

CB8-4710

42U

1000

905

2265

2090
