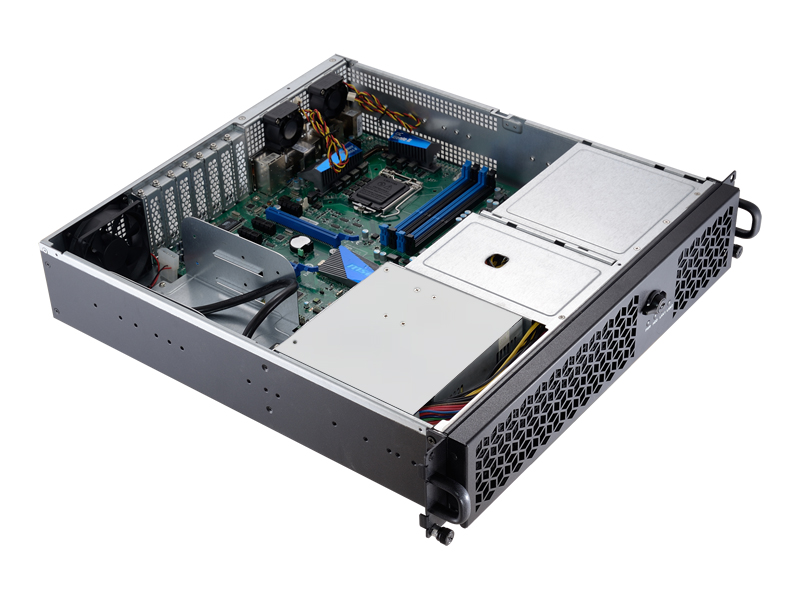

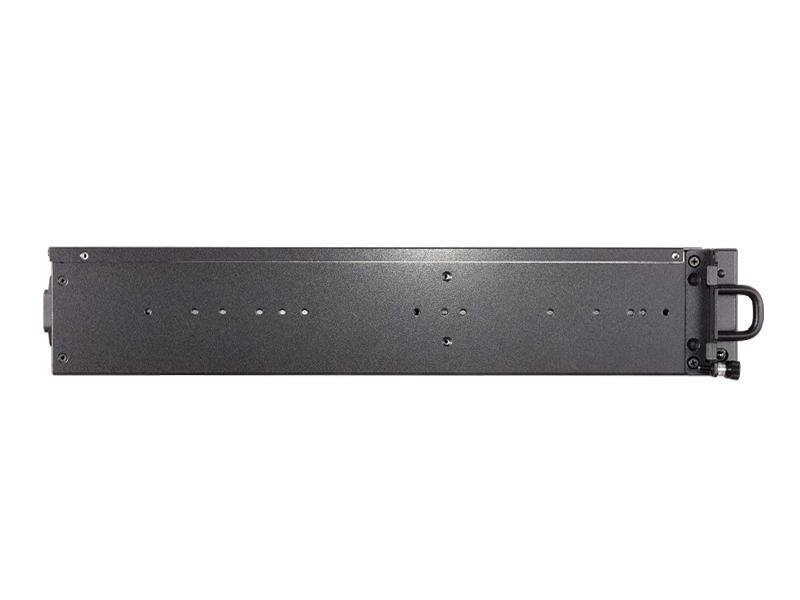

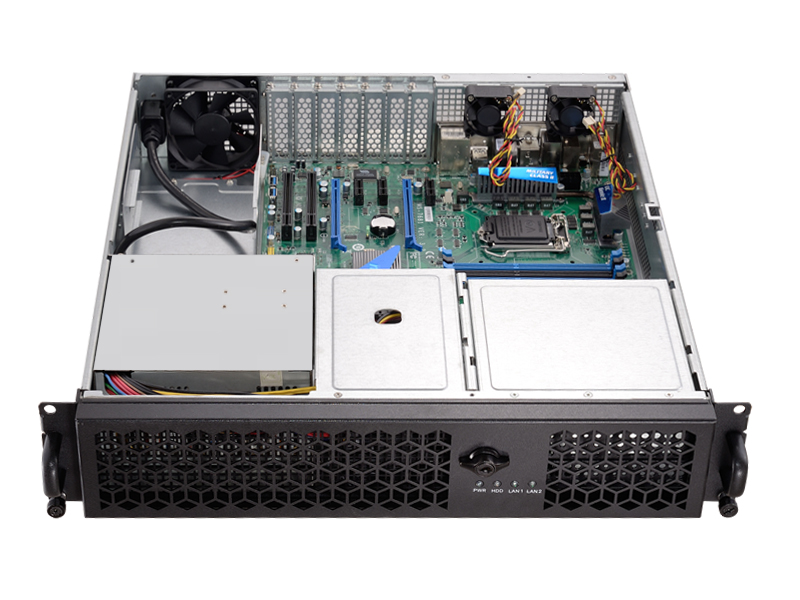

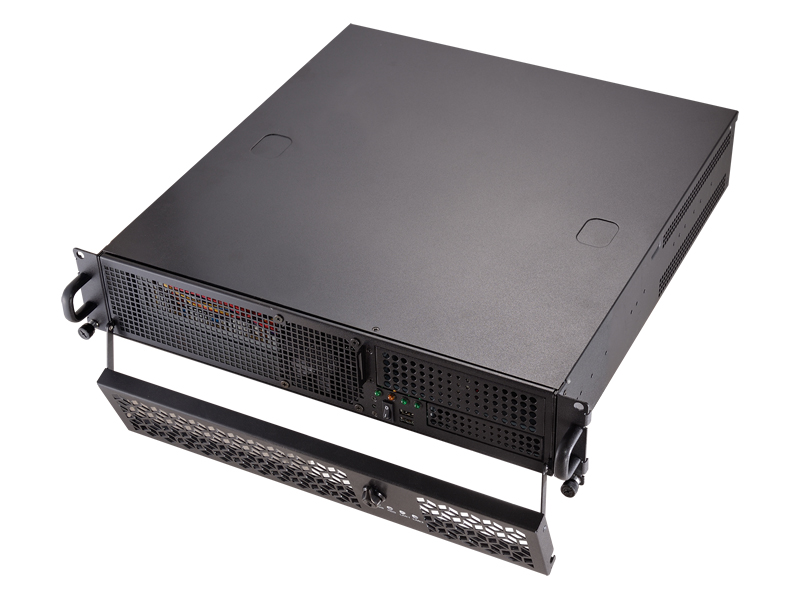

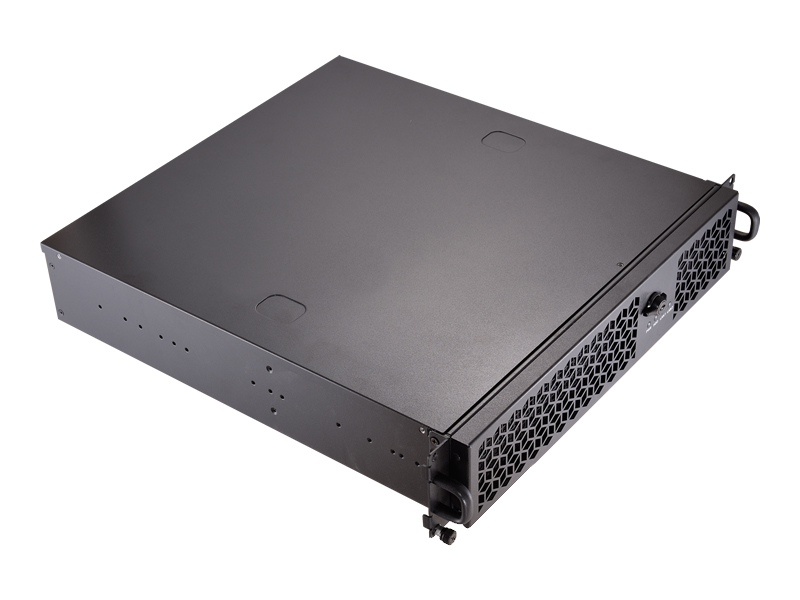

S2A01

2U Rackmount Chassis
ATX (12" x 9.6") or micro ATX

Features & Benefits

  • Supports 12” x 9.6” MB
  • Easy-swap 3-sots(Riser) or 7-slots(Low profile) rear window
  • Whole black chassis can fit strict environment
  • Internal HDD brackets with exclusive heat dissipation cooling fans
  • Highly Compatible slide rail with pre-position hole
  • Supports 8032 cooling fans with PS2 PSU

Specification

Model Name

S2A01

MB

ATX (12" x 9.6") or micro ATX

Backplane

N/A

External Bay

1 x 5.25 Bay
1 x 3.5 Bay

Internal Bay

4 x 3.5" HDD
1 x 2.5" HDD

Cooling Fan

Front: 8025 Sleeve fan x 1
Rear: 8025 Sleeve fan x 1, 4028 ball bearing fan x 2 ( option )

Rear Window

Low Profile (7 Slots) or Full High (3 Slots)

PSU

PS2

Front I/O

1 x VGA
1 x Power Status
1 x HDD Activity
2 x LAN Activity
Power On/Off
System Reset
2 x USB 2.0

Dimension (DxWxH mm)

455x427x88.1 mm

Sheet Metal

SGCC

Sheet Metal Thickness

1.2mm

Remark

Riser card (Option)

20/40/40HQ feet

20': 400, 40': 800, 40' HQ: 880 (Single packing)
